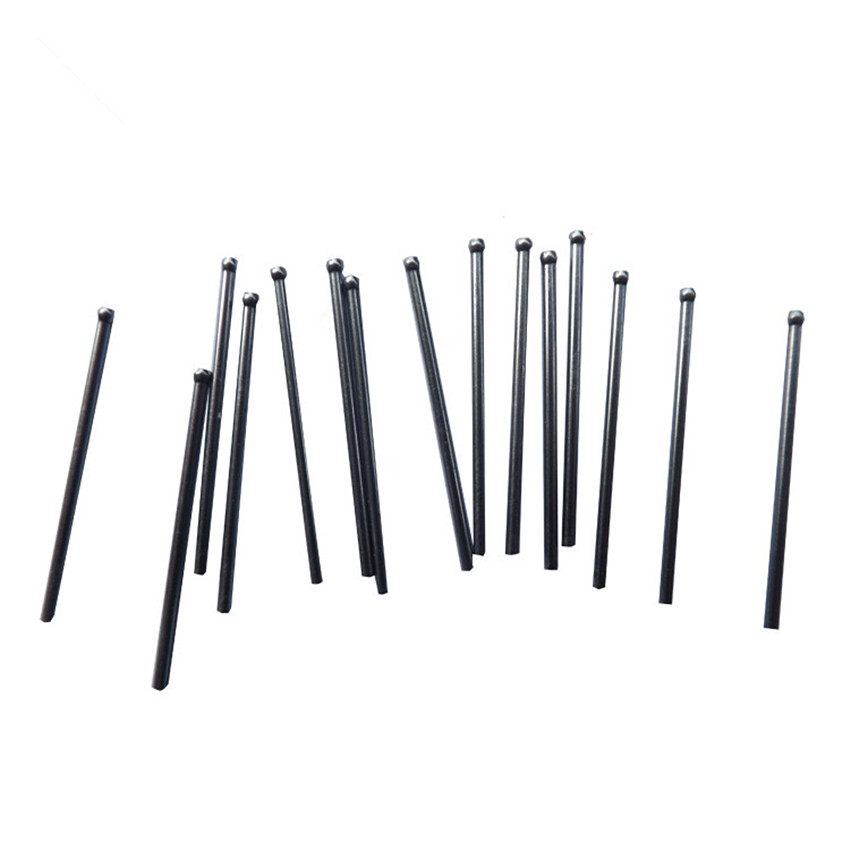

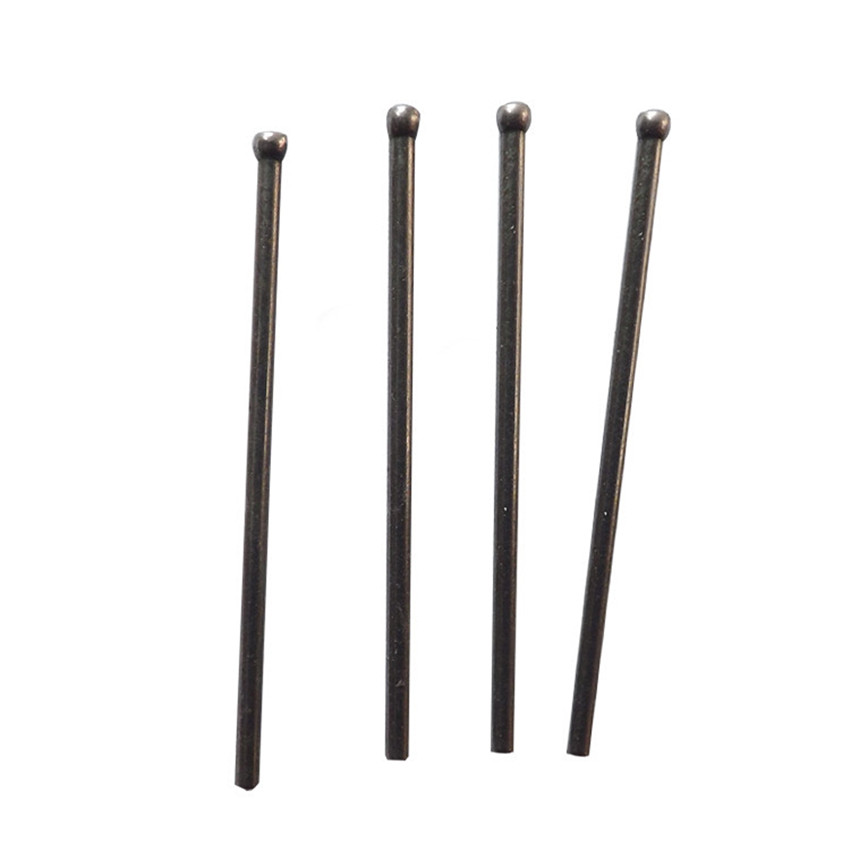

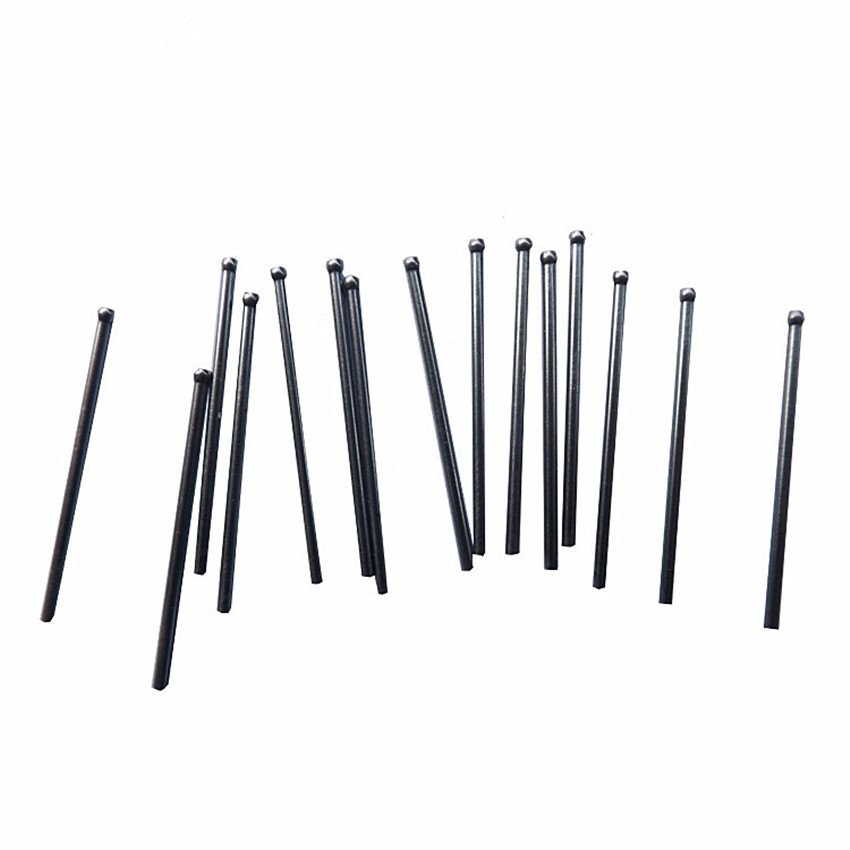

1.What’s deblock pin?

Deblock pin normally used on single layer PCB punching, after punching use the press pin to remove the block, normally the diameter can be range from 0.5-6.3mm, there are 2 hight you can choose, 27mm and 30mm.

2.Technical data of PCB press pin:

Diameter	0.5-6.3mm, gap 0.05mm
Lenght	27mm or 30mm
Tolerance	diameter :-0.02mm
Hardness	60-62HRC
Material	SKH-9 Steel
Origin	China
Packing	500pcs/PE bag
Suitable	PCB punching, mould pin

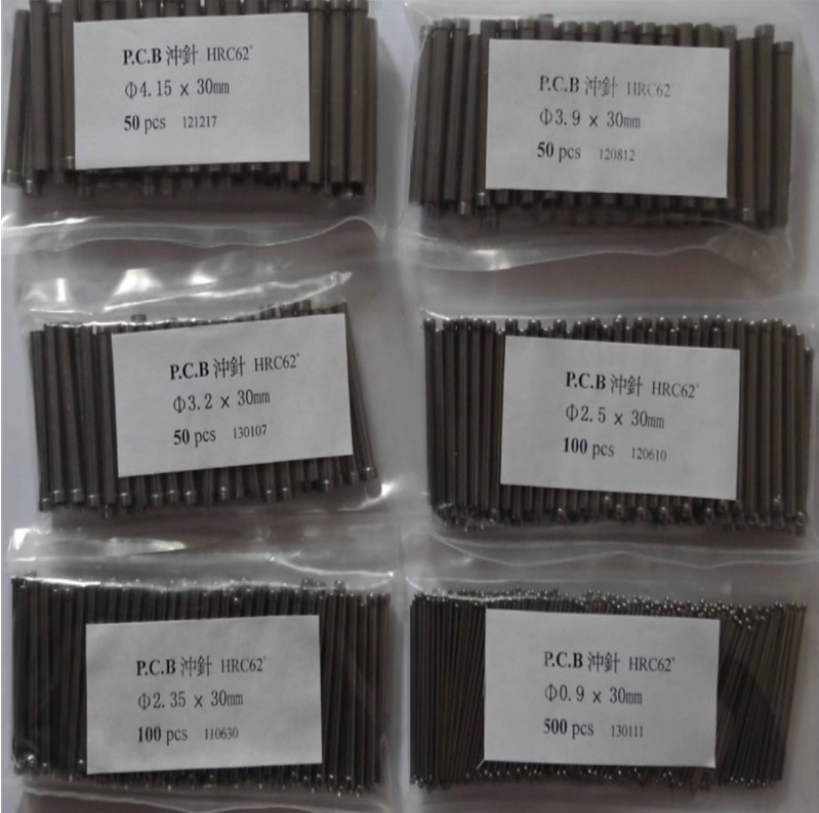

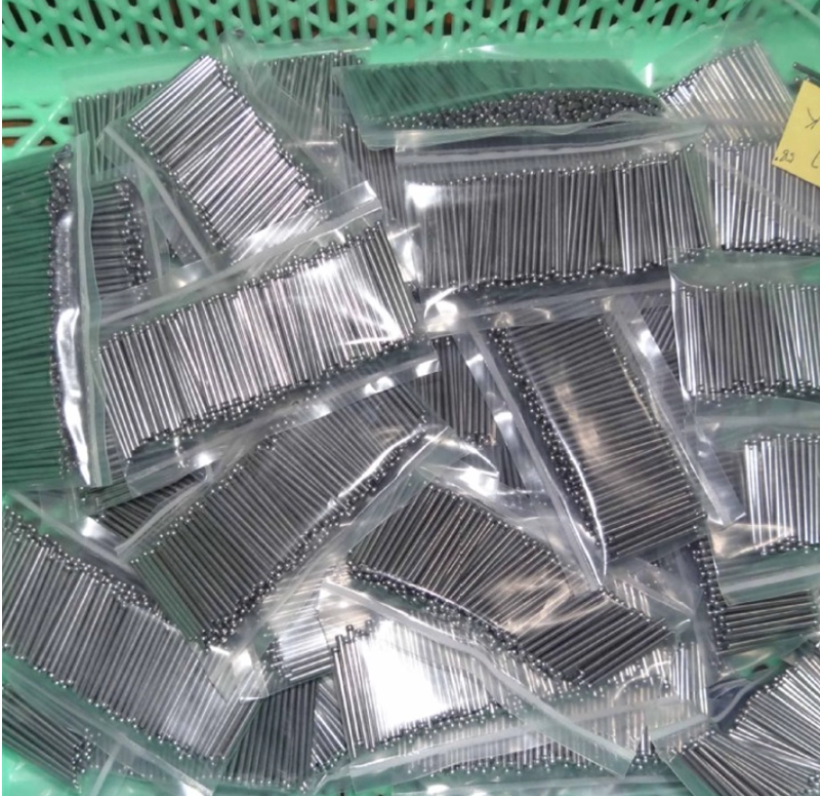

3.presser pinPacking:

Punch pin from 0.05-1.25 mm (500 pcs /bag)
Punch pin from 1.3-1.55 mm (300 pcs /bag)
Punch pin from 1.6-2.05 mm (200 pcs /bag)
Punch pin from 2.1-2.5 mm (100 pcs /bag)
Punch pin from 2.55-6.3 mm (50 pcs /bag

Lead time: have stock

4.Feature of presser pin:

•Different range of diameter can be choose, from 0.5mm-6.3mm, gap 0.05mm have stock.

•High hardness, the hardness can reach 60-62HRC

•Fast delivery, the deblocking pin for different size we have stock, we can send out soon after your order.

•Good finish, good toughness, high wear resistance

Welltronics Technology is a PCB material and consumables supplier in China, our pin series product include routing pin, silk scree pin, exposure pin, carlson pin ,presser pin ect…. Welcome to choose us if you have such kind of requirement
