Types of Drill Bits: How to Choose the Right Tool

Overview of Drill Bit Structure

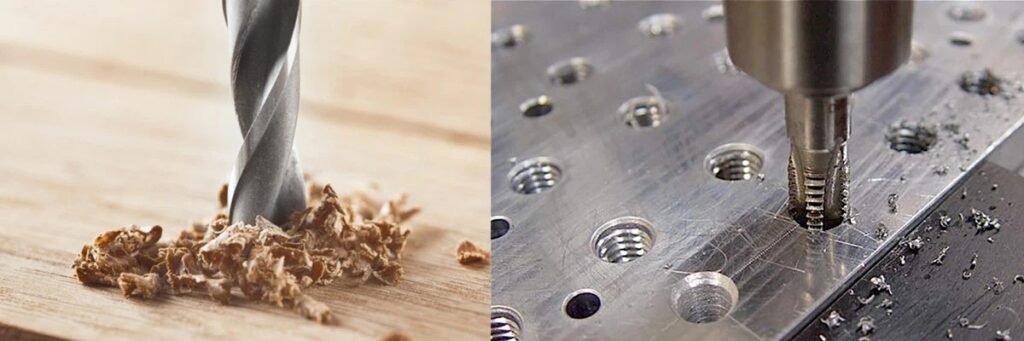

Drill bits is a precision cutting tool used to create round holes in a wide range of materials, including metal, wood, plastic, ceramic, and printed circuit boards (PCB). It is typically mounted in a hand drill, drill press, or CNC machine and works by rotating at high speed while applying axial pressure to remove material.

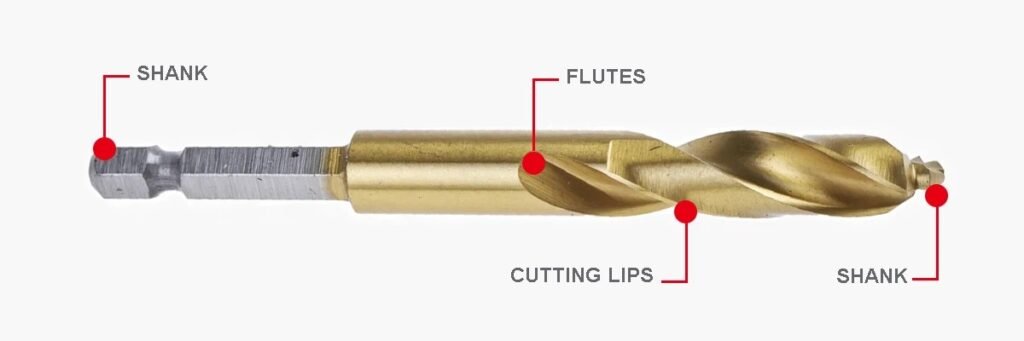

Drill bit is made up of several essential parts that work together to create accurate and efficient holes.

• Shank: The end held by the drill, transmitting rotation and torque.
• Body: The main section of the bit, providing strength and support.
• Flutes: Spiral grooves that remove chips and reduce heat.
• Cutting Edges: Sharp edges at the tip that cut the material.
• Point (Tip): Centers the drill and starts the hole.
• Web: The core of the drill bit that adds rigidity.

Common Types of Drill Bits

Selecting the right drill bit is essential for achieving a clean finish and preventing damage to your tools or materials.

Why Carbide Wins

When it comes to durability and heat resistance, the material of the bit is paramount. While High-Speed Steel (HSS) is common, professionals often turn to Tungsten steel or Carbide / Solid Carbide for heavy-duty tasks.

• Tungsten Carbide Drill Bits: These are the industry standard for high-speed machining. A tungsten carbide drill bit can maintain its cutting edge at temperatures that would soften HSS.
• Drill bits for hardened steel: If you are working with stainless steel or high-tensile alloys, you need tungsten carbide drill bits for hardened steel. These bits are engineered to penetrate the toughest surfaces without dulling.
• Tungsten carbide drill bits for metal: Often sold in a tungsten carbide drill bit set, these are essential for automotive and industrial fabrication.

The Precision World: PCB Drill Bits

In electronics manufacturing, precision is measured in microns. A pcb drill bit (or drill bit for pcb boards) is usually made from carbide pcb drill bits to ensure clean holes through fiberglass (FR4) and copper layers.

• PCB Drill Bit Sizes: These are much smaller than standard bits. Professionals often refer to a pcb drill bit size chart to select the exact diameter needed for component leads.
• Common Sizes: You might find a pcb drill bit 15mm for specific mounting holes, but most pcb board drill bits are much finer.
• Sets: Most hobbyists and manufacturers buy a pcb drill bit set to ensure they have every increment covered for complex circuit designs.

Drill Bit Size Charts Explained

drill bit size chart or drill bit sizes chart helps users select the correct diameter for their project.

Common charts include:

• Metric sizes (mm)
• Imperial sizes (inches, e.g., 3 8 drill bit)
• PCB-specific charts (PCB drill bit size chart)

Using the correct drill bit chart ensures accurate hole dimensions and compatibility with fasteners or vias.

Choosing the Right Drill Bit Set

For most users, purchasing a comprehensive drill bit set (or drill bits set) is more cost-effective than buying individual pieces. When comparing the drill bit price, consider the “cost per hole.” A cheaper bit that breaks after five uses is more expensive in the long run than a tungsten carbide drill bit set that lasts for hundreds of cycles.

Quick Reference Guide

Conclusion

Understanding the types of drill bits and their applications is essential for efficient and accurate drilling. From standard drill bits to advanced tungsten carbide drill bits for hardened steel and high-precision PCB drill bits, selecting the right tool ensures better results, longer tool life, and reduced downtime.
